Two-wire Serial EEPROM,BL24C02A Replace 24C02.
FEATURES

? Compatible with all I2C bidirectional

   datatransfer protocol

? Memory array:

   2K bits (256X 8) / 4K bits (512 X 8) / 8K

   bits (1024 X 8) / 16K bits (2048 X 8) ofEEPROM

   Page size: 16 bytes

? Single supply voltage and high speed:

 1  MHz Random and sequential Read modes

? Write:Byte Write within 3 ms

   Page Write within 3 ms

   Partial Page Writes Allowed

? Write Protect Pin for Hardware Data Protection

? Schmitt Trigger, Filtered Inputs for NoiseSuppression

? High-reliability

  Endurance: 1 Million Write Cycles

  Data Retention: 100 Years

? Enhanced ESD/Latch-up protection H B M 8 0 0 0 V

? TSOT23-5、8-lead PDIP/SOP/TSSOP and UDFNpackages

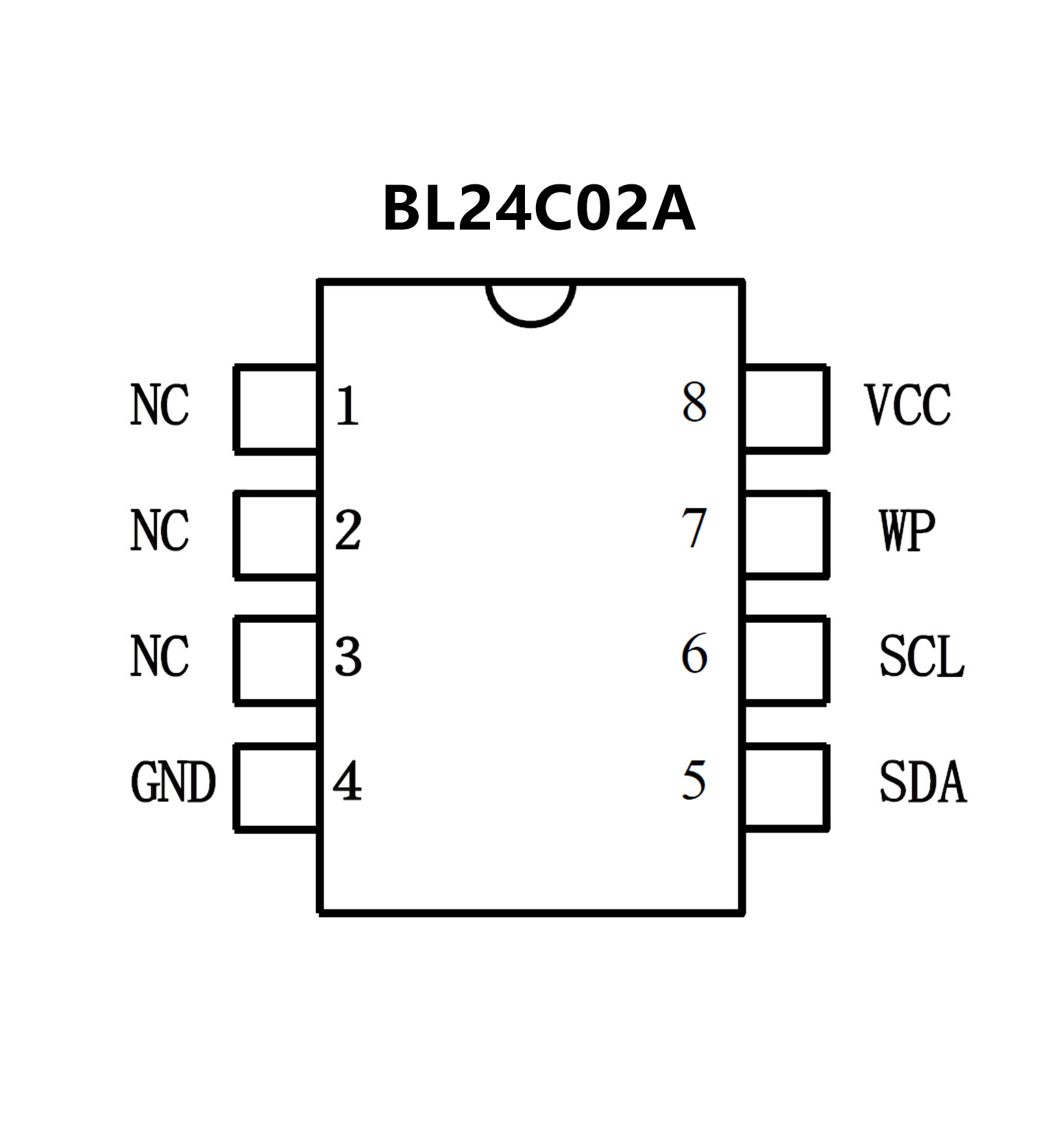

PIN CONFIGUTION
優勢替代
24C02 24C02.pdf

No.12010

FEATURES

Wide Voltage Operation
- VCC = 1.8V to 5.5V

Operating Ambient Temperature: -40 to +85℃

Internally Organized:

  24C02, 256 X 8 (2K bits)

  24C04, 512 X 8 (4K bits)

  24C08, 1024 X 8 (8K bits)

  24C16, 2048 X 8 (16K bits)

Two-wire Serial Interface

Schmitt Trigger, Filtered Inputs for Noise Suppression

Bidirectional Data Transfer Protocol

1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility

Write Protect Pin for Hardware Data Protection

8-byte Page (2K), 16-byte Page (4K, 8K, 16K) Write Modes

Partial Page Writes Allowed

Self-timed Write Cycle (5 ms max)

High-reliability

  Endurance: 1 Million Write Cycles

  Data Retention: 100 Years

8-lead PDIP, 8-lead SOP and 8-lead TSSOP Packages

Die Sales: Wafer Form, Waffle Pack

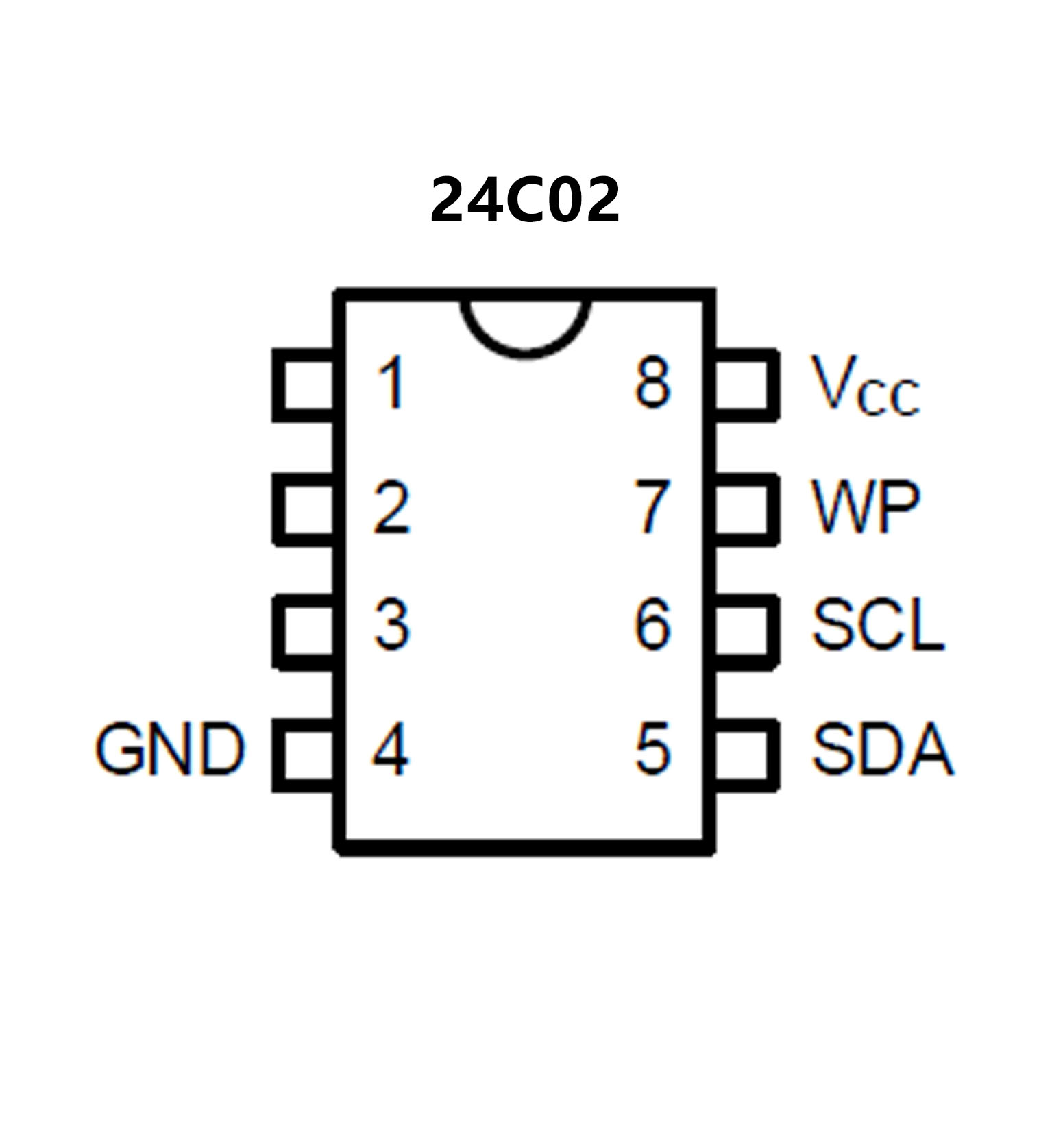

PIN CONFIGUTION
