3A Bipolar Linear Regulator, BL1085 Replace LM1085.
BL1085
BL1085.pdf
BL1085.pdfFEATURES
? Fixed and adjustable versions.
? Maximum output current : 3A
? Maximum input voltage: 15V
? Line regulation: 0.2％ (Typical)
? Load regulation: 0.2％ (Typical)
? On-Chip Thermal Shutdown
? Operation environment Temperature: -10℃
~ 85℃

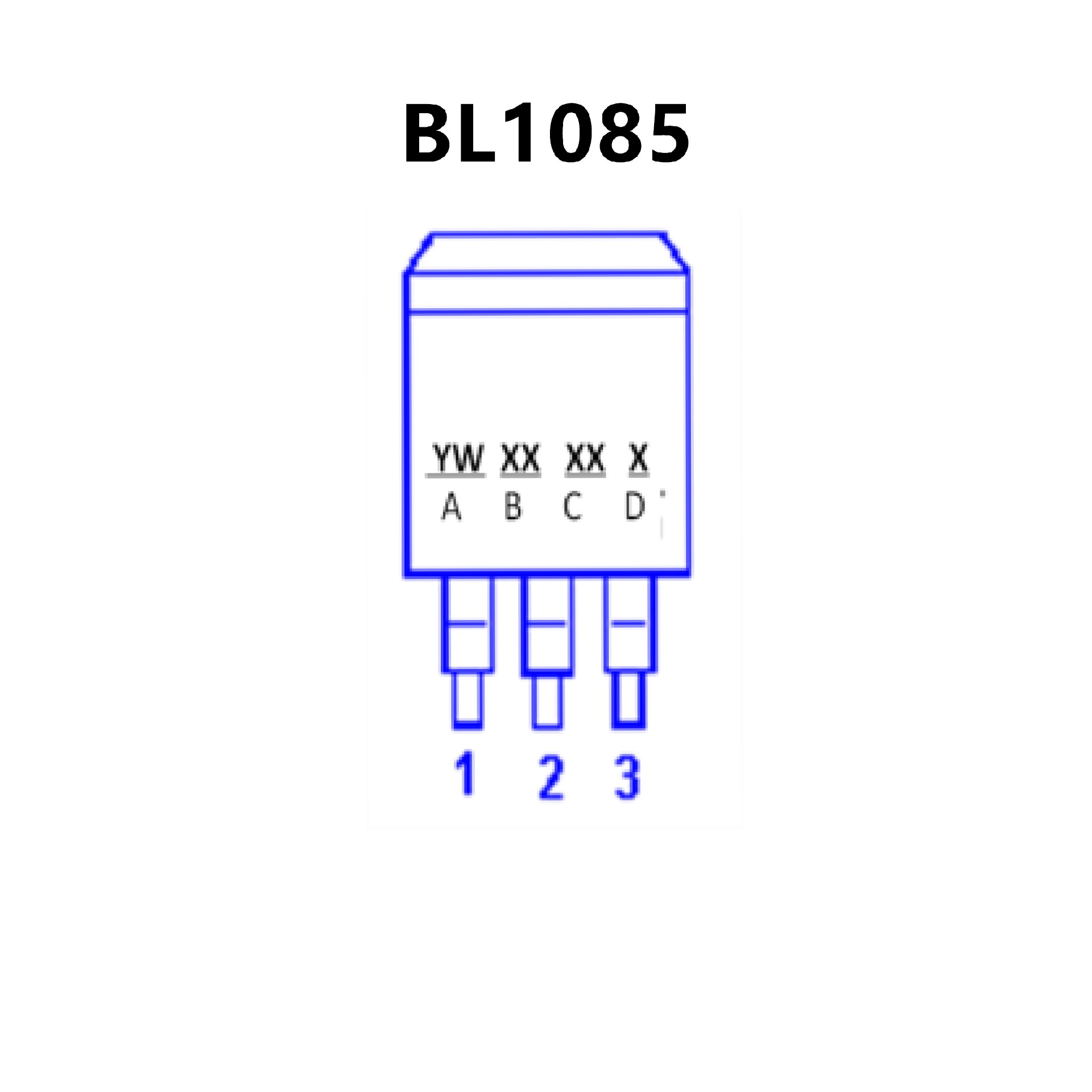

PIN CONFIGUTION
優勢替代
FEATURES
? Available in 3.3-V, 5.0-V, 12-V and Adjustable Versions
? Current Limiting and Thermal Protection
? Output Current 3 A
? Line Regulation 0.015% (typical)
? Load Regulation 0.1% (typical)

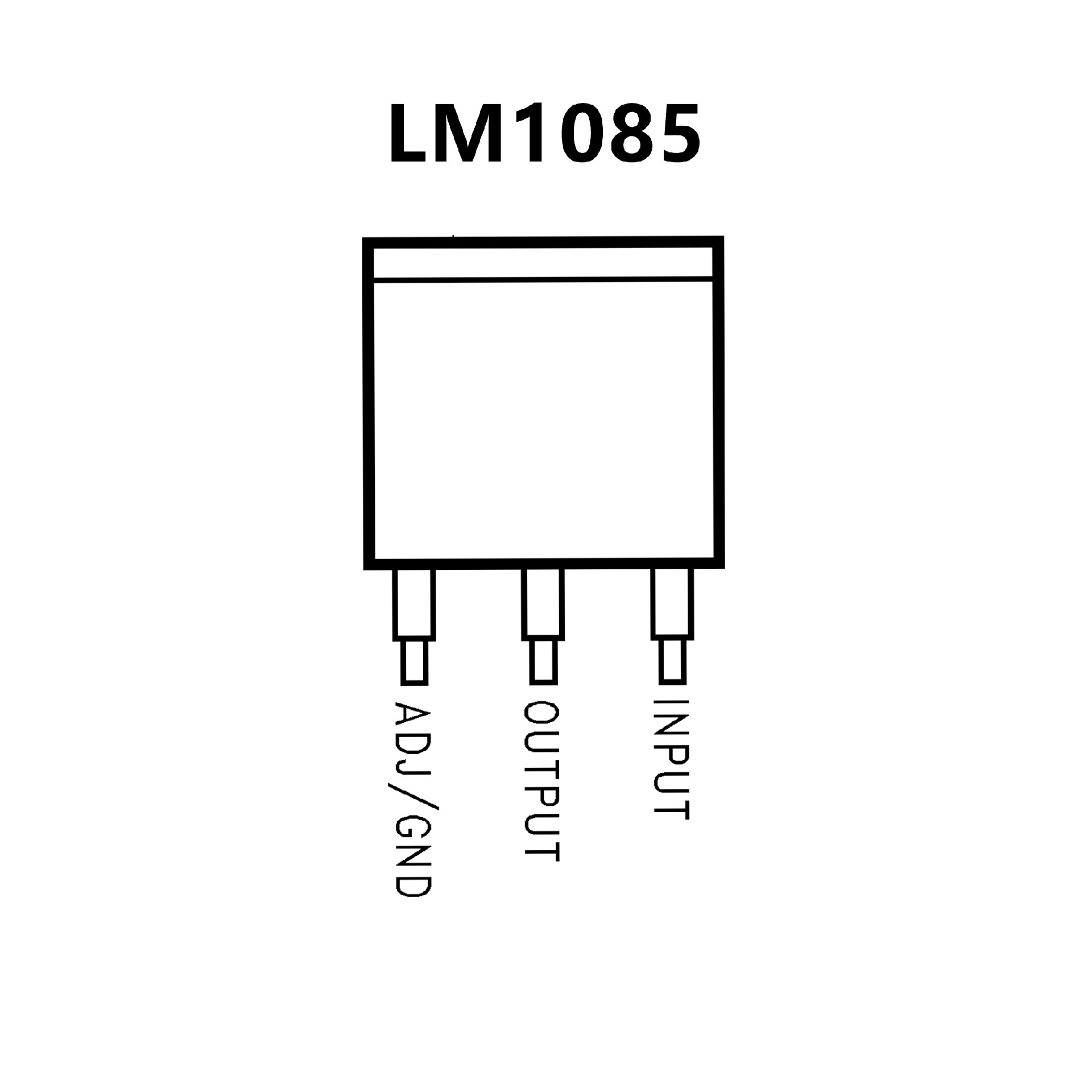

PIN CONFIGUTION
