3.3 V octal transceiver with direction pin (3 state)，Replace 74LVT245PW
74LVTH245XSS20G.pdf優(yōu)勢(shì)替代
FEATURES
? 3-state buffers
? Octal bidirectional bus interface
? Input and output interface capability to
systems at 5 V supply
? TTL input and output switching levels
? Output capability: +64 mA/?32 mA
? Latch-up protection exceeds 500 mA per
JESD78 class II level A
? ESD protection:
? HBM JESD22-A114E exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? Bus-hold data inputs eliminate the
need for external pull-up resistors for unused inputs
? Live insertion/extraction permitted
? Power-up 3-state

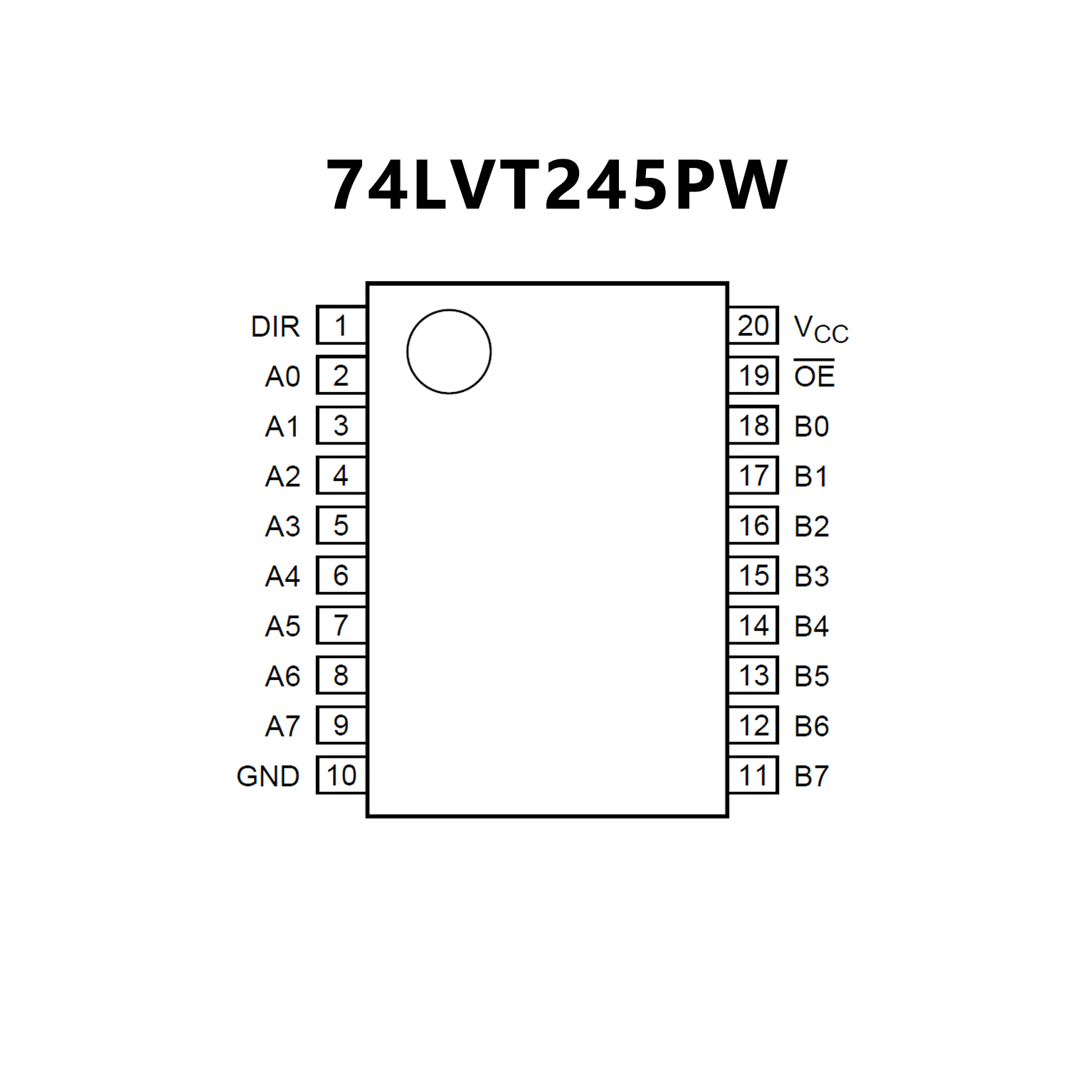

PIN CONFIGUTION
