Octal Buffer/Line Driver with 5V Tolerant Inputs/Outputs, 74LVC541A Replace 74LVC541APW.
74LVC541A
74LVC541A.pdf
74LVC541A.pdfFEATURES
? Supply Voltage Range: 1.2V to 3.6V
? Over-Voltage Tolerant Inputs up to 5.5 V
? CMOS Low Power Dissipation
? +24mA/-24mA Output Current
? Support Partial Power-down Mode
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package

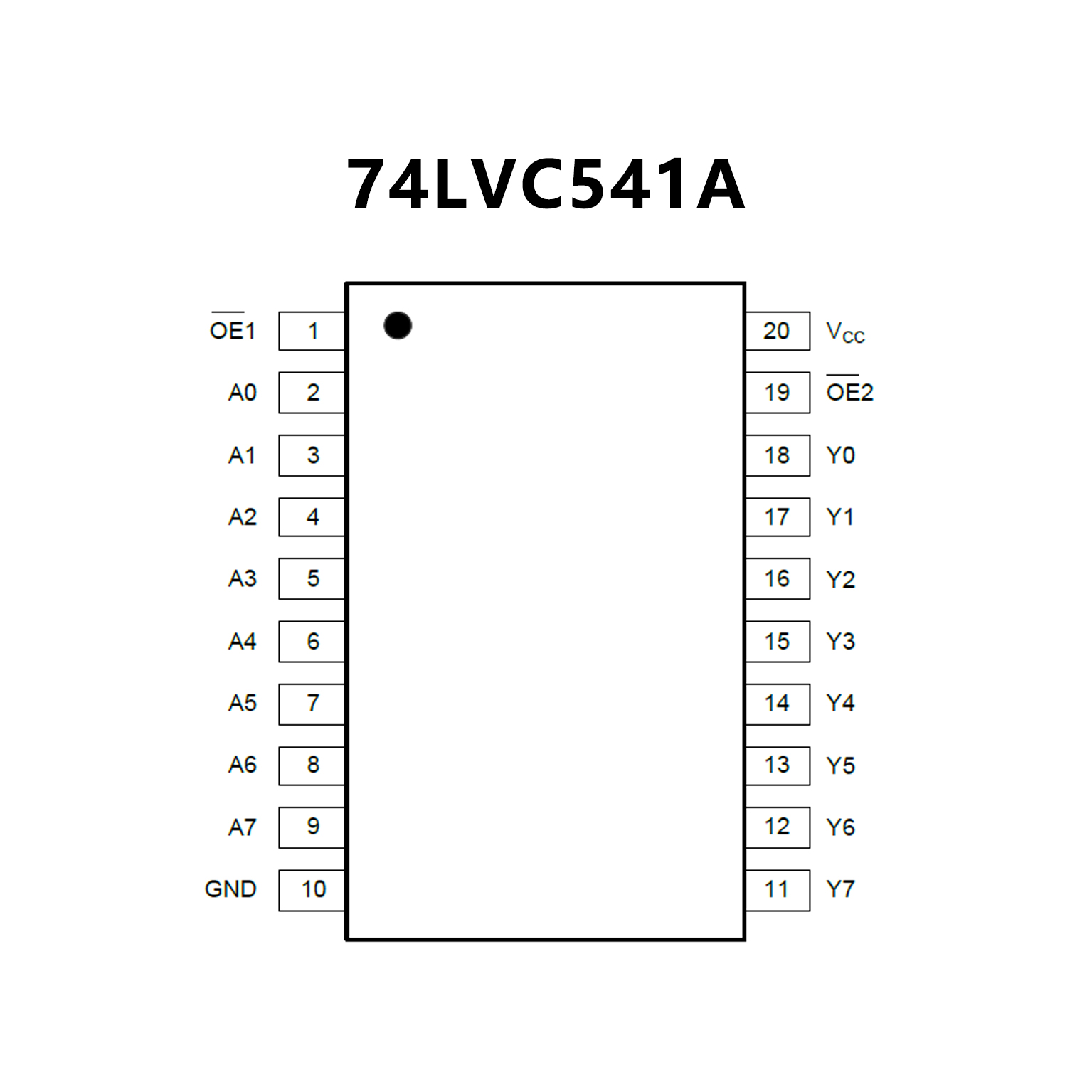

PIN CONFIGUTION
優勢替代
FEATURES
? Overvoltage tolerant inputs to 5.5 V
? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low power consumption
? Direct interface with TTL levels
? IOFF circuitry provides partial Power-down mode operation
? Complies with JEDEC standard:
? JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Specified from -40 °C to +85 °C and -40 °C to +125 °C

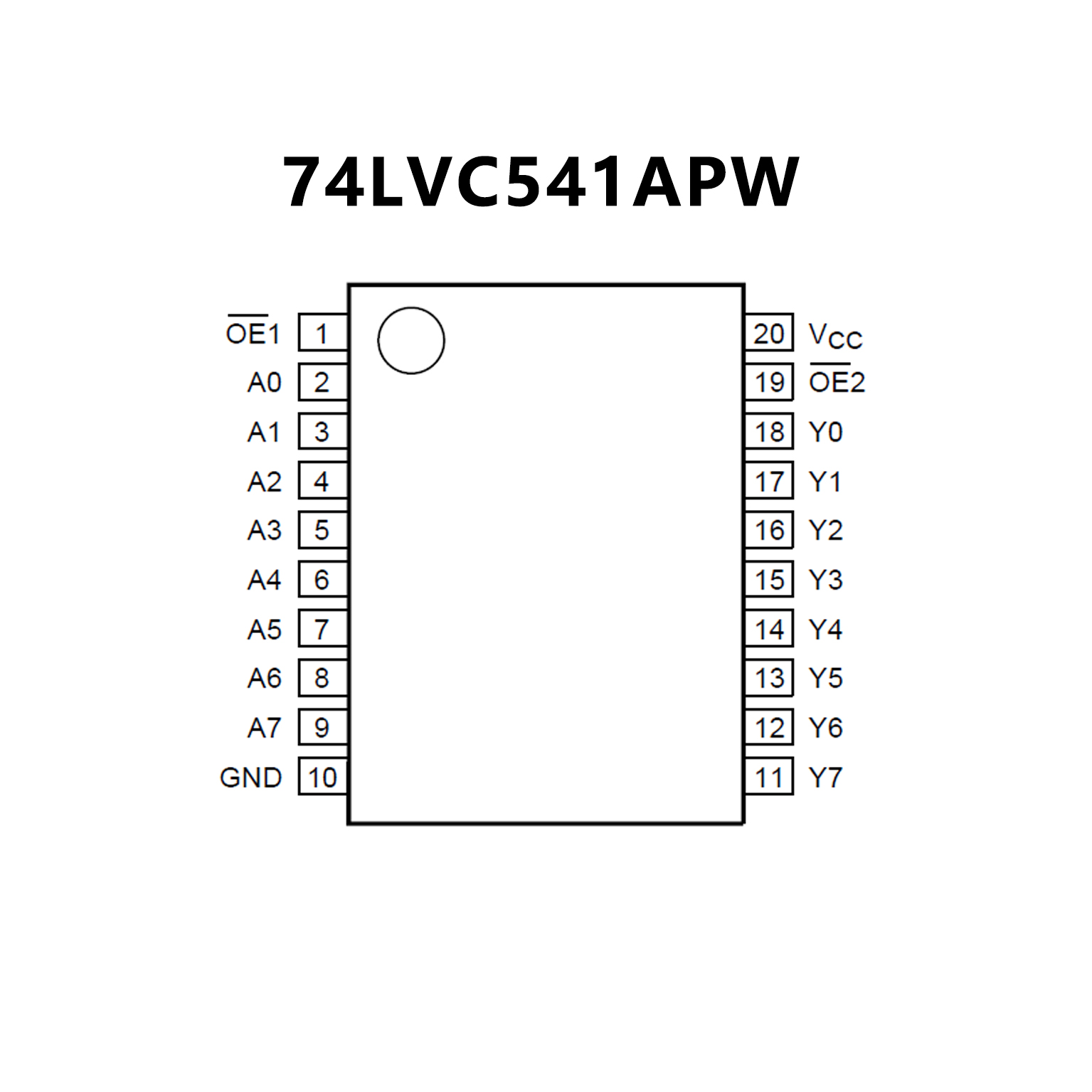

PIN CONFIGUTION
