Dual Schmitt Trigger Buffer, 74LVC2G17XN6G/TR Replace SN74LVC2G17.
74LVC2G17
74LVC2G17.pdf
74LVC2G17.pdfFEATURES
? Wide Operating Voltage Range: 1.65V to 5.5V
? Inputs Accept Voltages up to 5.5V
? +24mA/-24mA Output Current at VCC = 3.0V
? Low Power Dissipation: ICC = 2μA (MAX)
? Propagation Delay: tPD = 7.5ns (TYP) at VCC = 3.3V
? Support Partial Power-Down Mode
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-6, SOT-23-6,
XTDFN-1×1-6L and UTDFN-1.45×1-6AL Packages

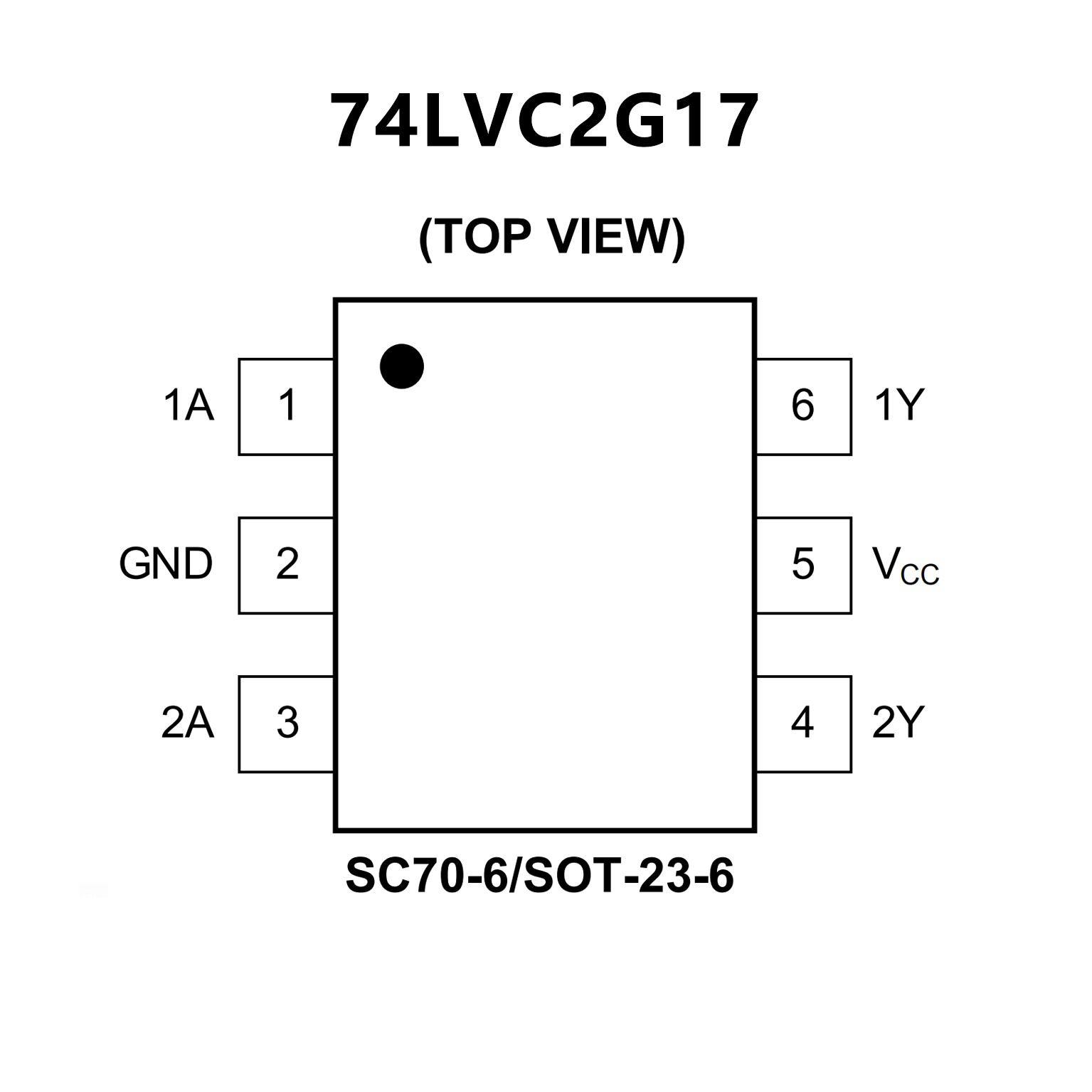

PIN CONFIGUTION
優勢替代
FEATURES
? Schmitt-Trigger inputs provide hysteresis
? Available in the Texas Instruments NanoFree? Package
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 5.4 ns at 3.3 V
? Low Power Consumption, 10-μA Max ICC
? ±24-mA Output Drive at 3.3 V
? Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
2 V at VCC = 3.3 V, TA = 25°C
? off Supports Live Insertion, Partial-
Power-Down Mode Operation and
Back-Drive Protection
? Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model

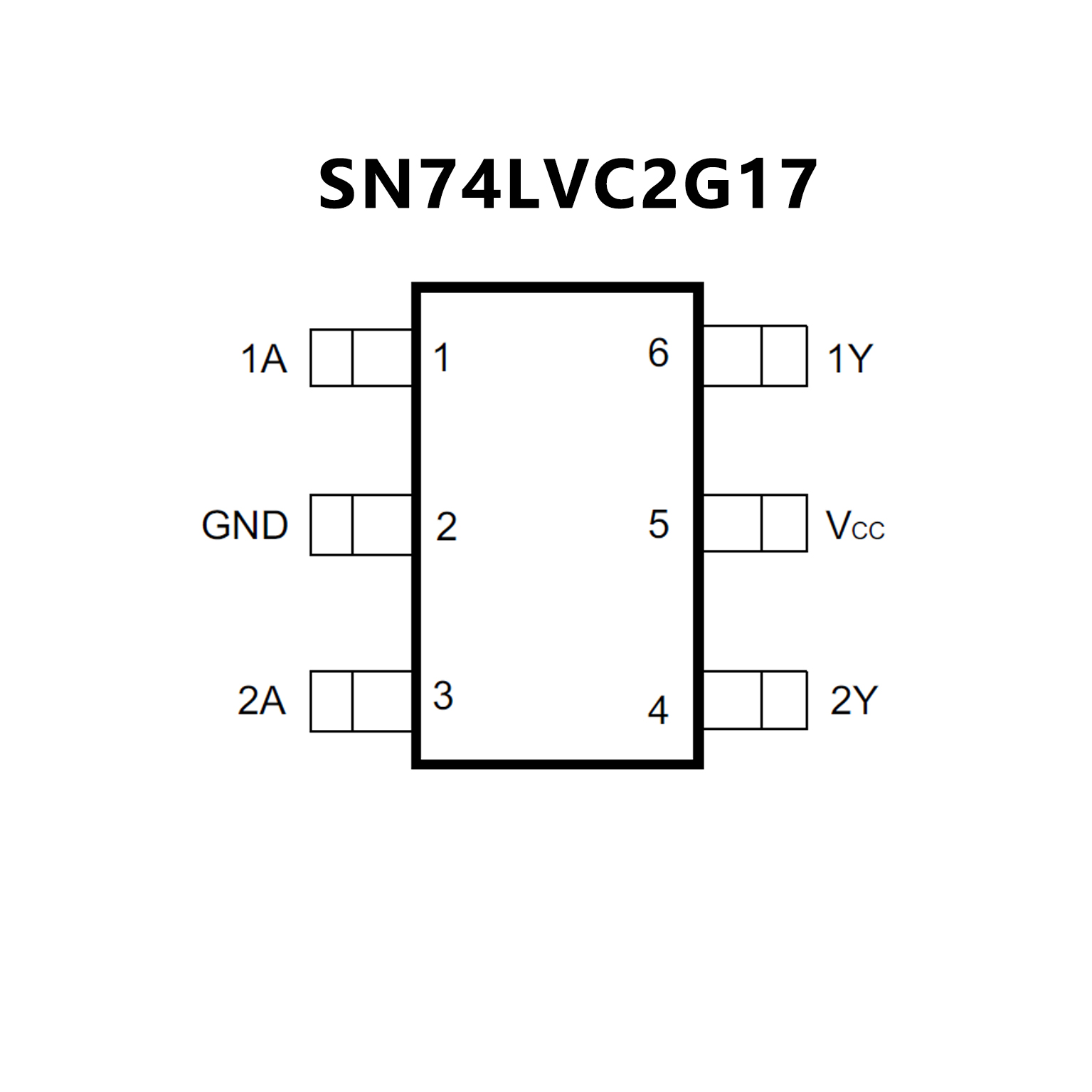

PIN CONFIGUTION
