2 input EXCLUSIVE OR gate,74LVC1G86XN5G Replace 74LVC1G86GV
74LVC1G86XN5G.pdf優勢替代
FEATURES
? Wide supply voltage range from 1.65 V to 5.5 V
? High noise immunity
? Overvoltage tolerant inputs to 5.5 V
? Complies with JEDEC standard:
? JESD8-7 (1.65 V to 1.95 V)
? JESD8-5 (2.3 V to 2.7 V)
? JESD8C (2.7 V to 3.6 V)
? JESD36 (4.5 V to 5.5 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? ±24 mA output drive (VCC = 3.0 V)
? CMOS low power dissipation
? Latch-up performance exceeds 250 mA
? IOFF circuitry provides partial Power-down mode operation
? Direct interface with TTL levels
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C

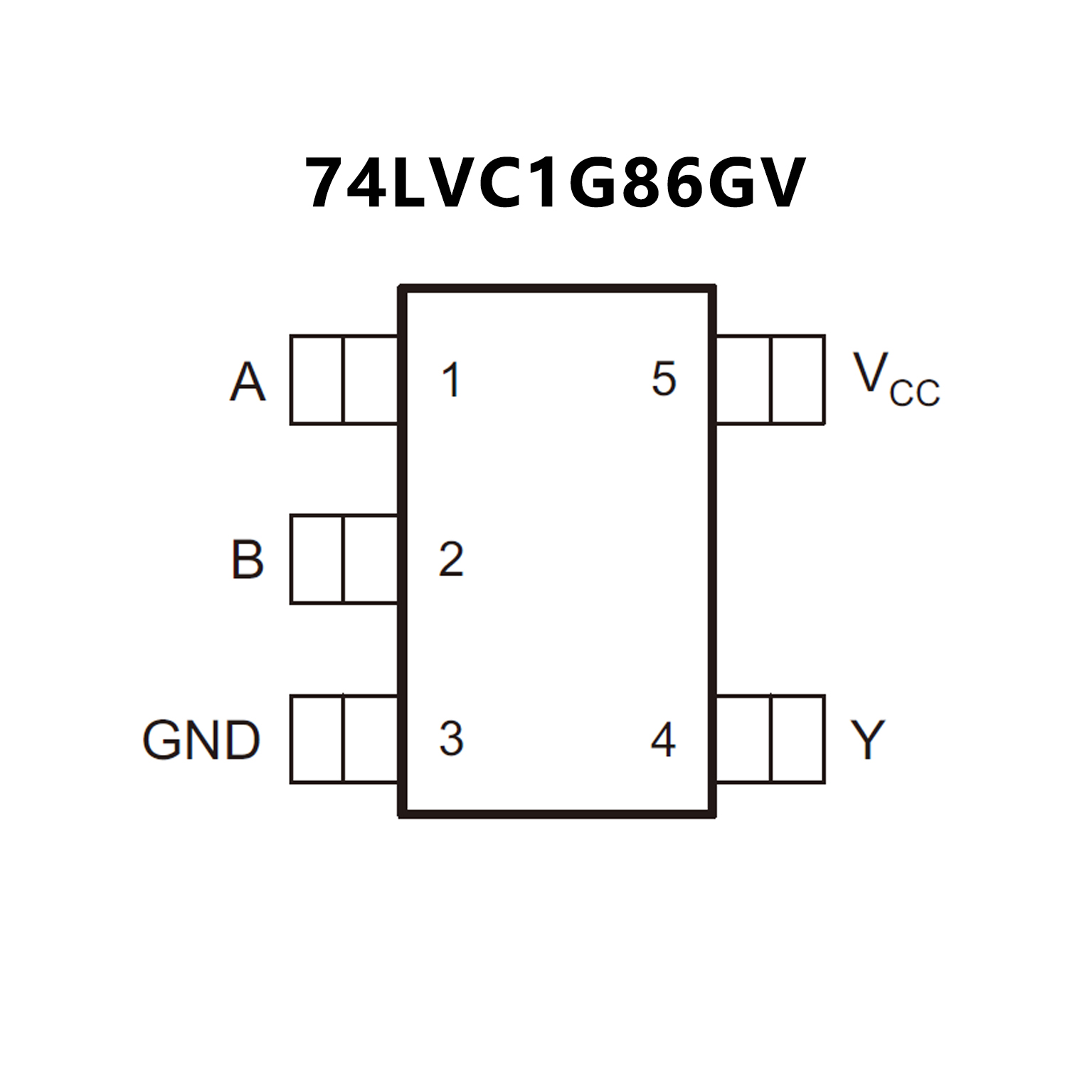

PIN CONFIGUTION
