Single 2-Input OR Gate,74LVC1G32XC5G Replace SN74AHCT1G32.
74LVC1G32XC5G
74LVC1G32XC5G.pdf
74LVC1G32XC5G.pdfFEATURES
? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operating Range of 4.5 V to 5.5 V
? Max tpd of 8 ns at 5 V
? Low Power Consumption, 10-μA Max ICC
? ±8-mA Output Drive at 5 V
? Inputs are TTL-Voltage Compatible
? Latch-Up Performance Exceeds 250 mA Per JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model
200-V Machine Model
1000-V Charged-Device Model

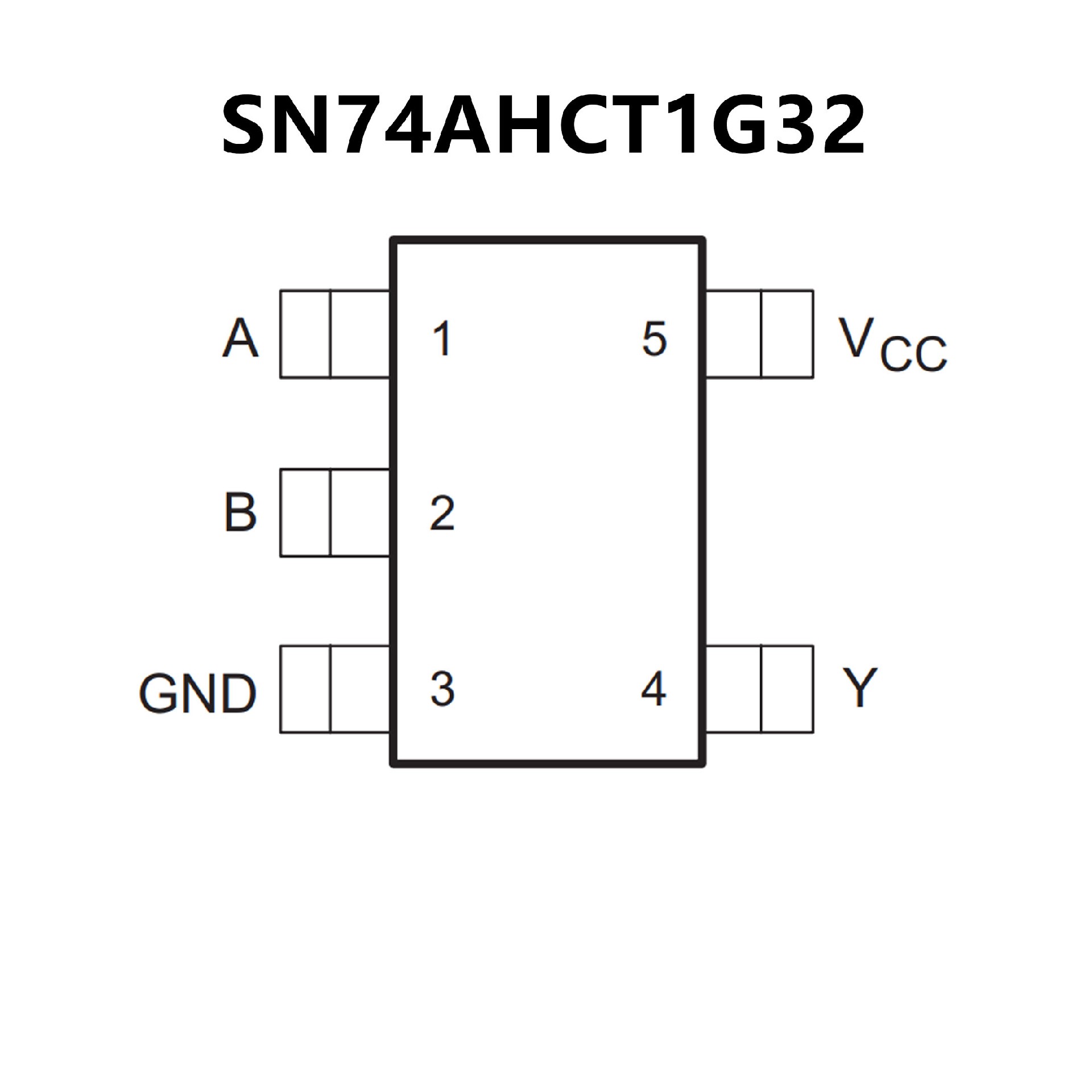

PIN CONFIGUTION
