2 input single supply translating AND gate，Replace 74LV1T08GV
74LV1T08XN5G.pdf優(yōu)勢替代
FEATURES
? Single supply voltage translator
at 1.8 V, 2.5 V, 3.3 V and 5.0 V
? Up translation
? 1.2 V to 1.8 V at VCC = 1.8 V
? 1.5 V to 2.5 V at VCC = 2.5 V
? 1.8 V to 3.3 V at VCC = 3.3 V
? 3.3 V to 5.0 V at VCC = 5.0 V
? Down translation
? 3.3 V to 1.8 V at VCC = 1.8 V
? 3.3 V to 2.5 V at VCC = 2.5 V
? 5.0 V to 3.3 V at VCC = 3.3 V
? 5 V tolerant inputs
? Latch-up performance exceeds 250 mA per JESD 78 Class II
? ESD protection:
? HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 2 kV
? CDM JESD22-C101 exceeds 1 kV
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

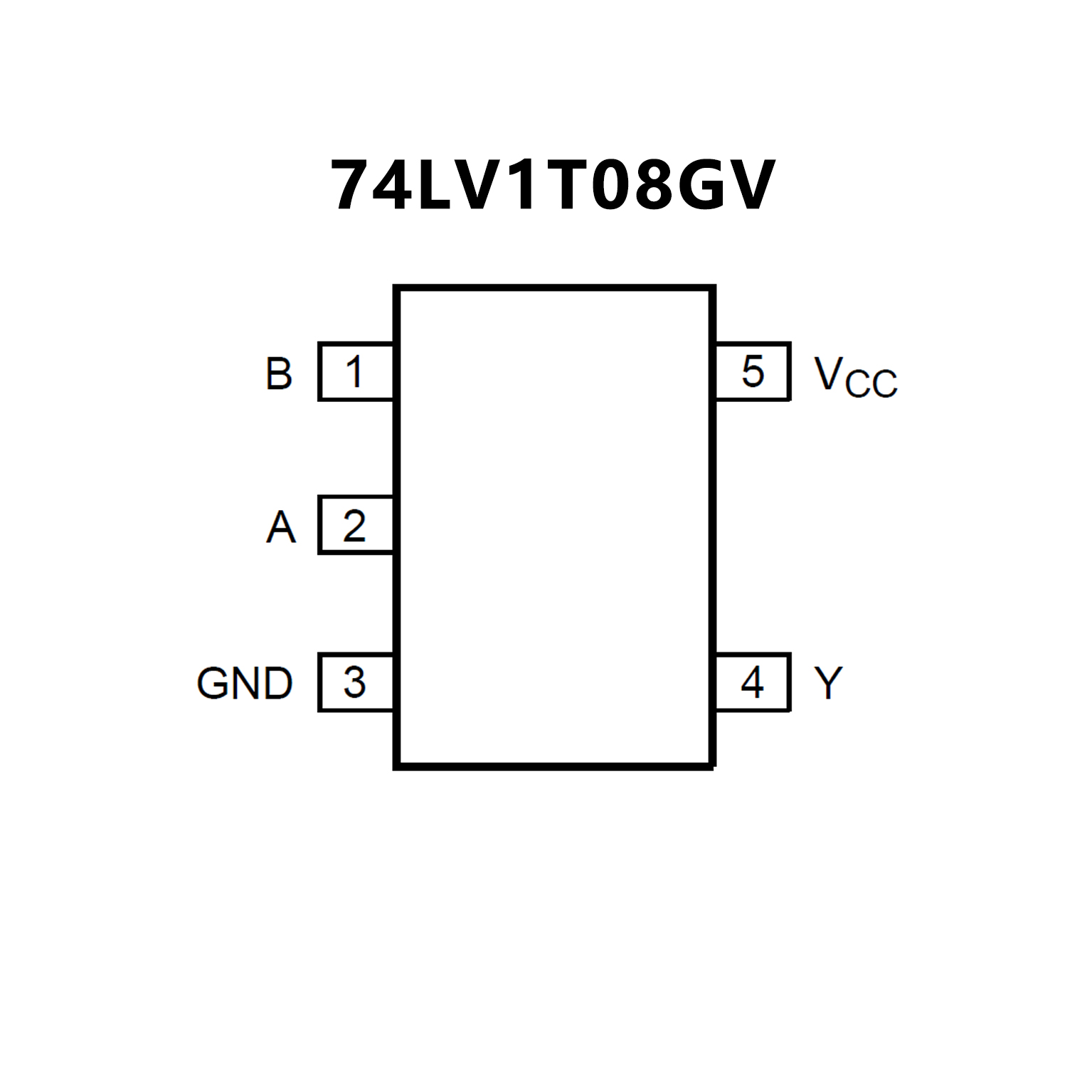

PIN CONFIGUTION
