74LV1T08XC5G.pdf? Single Supply Voltage Translator at 1.8V, 2.5V,3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package
? Single-Supply Voltage Trans1ator at
5.0/3.3/2.5/1.8v vcc
? Operating Range of 1.8v to 5.5vUp Trans1ation
1.2V(1) to 1.8V at 1.8v Vcc
1.5V(1) to 2.5V at 2.5v vcc
1.8V(1) to 3.3V at 3.3v vcc
3.3V to 5.0v at 5.ovvcc.
? Down Trans1ation
3.3v to 1.8v at 1.8v vcc
3.3 V to 2.5v at 2.5v vcc
5.0v to 3.3v at 3.3v vcc.
? Logic Output is Referenced to vcc. output Drive
8.0mA Output Drive at 5.ov
7.0mA Output Drive at 3.3 v
3.0mA Output Drive at 1.8v
? Characterized up to 50MHz at 3.3v vcc
? 5.0V Tolerance on Input Pins
? -40°C to 125C Operating Temperature Range
? Latch-Up Performance Exceeds 250mA
Per JESD 17
? ESD Performance Tested Per JESD 22
200o-V Human-Body Mode1
(A114-B，C1ass II)
200-V Machine Mode1 (A115-A)
1000-v Charged-Device Mode1 (C101). Supports

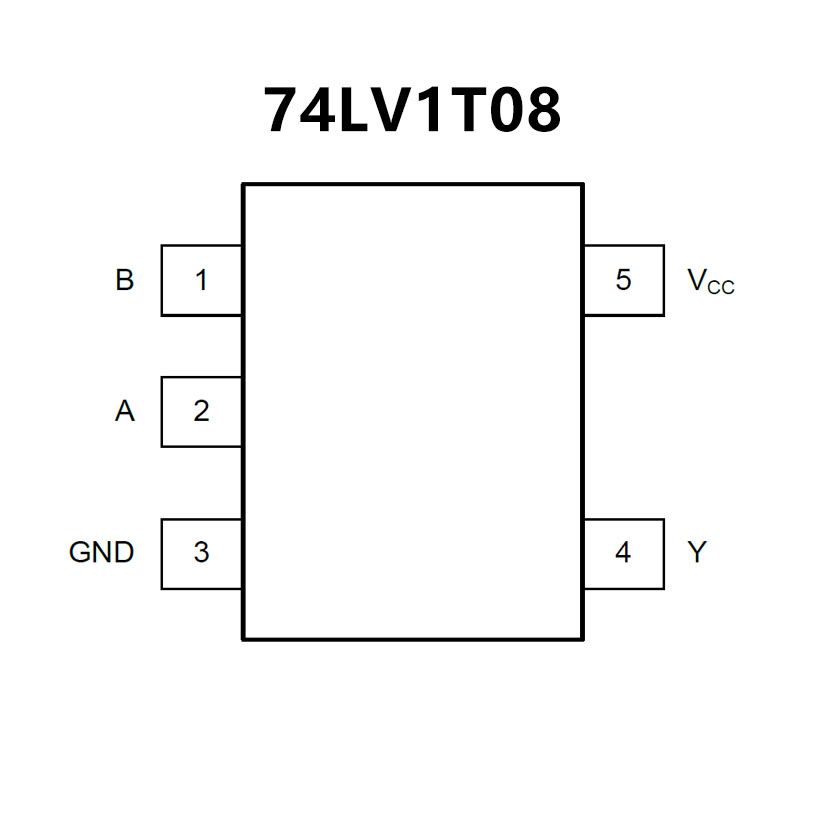

Standard Logic Pinouts
? CMos Output B Compatib1e with AUP1G and
LVC1G Families
(1)Refer to the VIH/VILand output
drive for lower vCC condition
