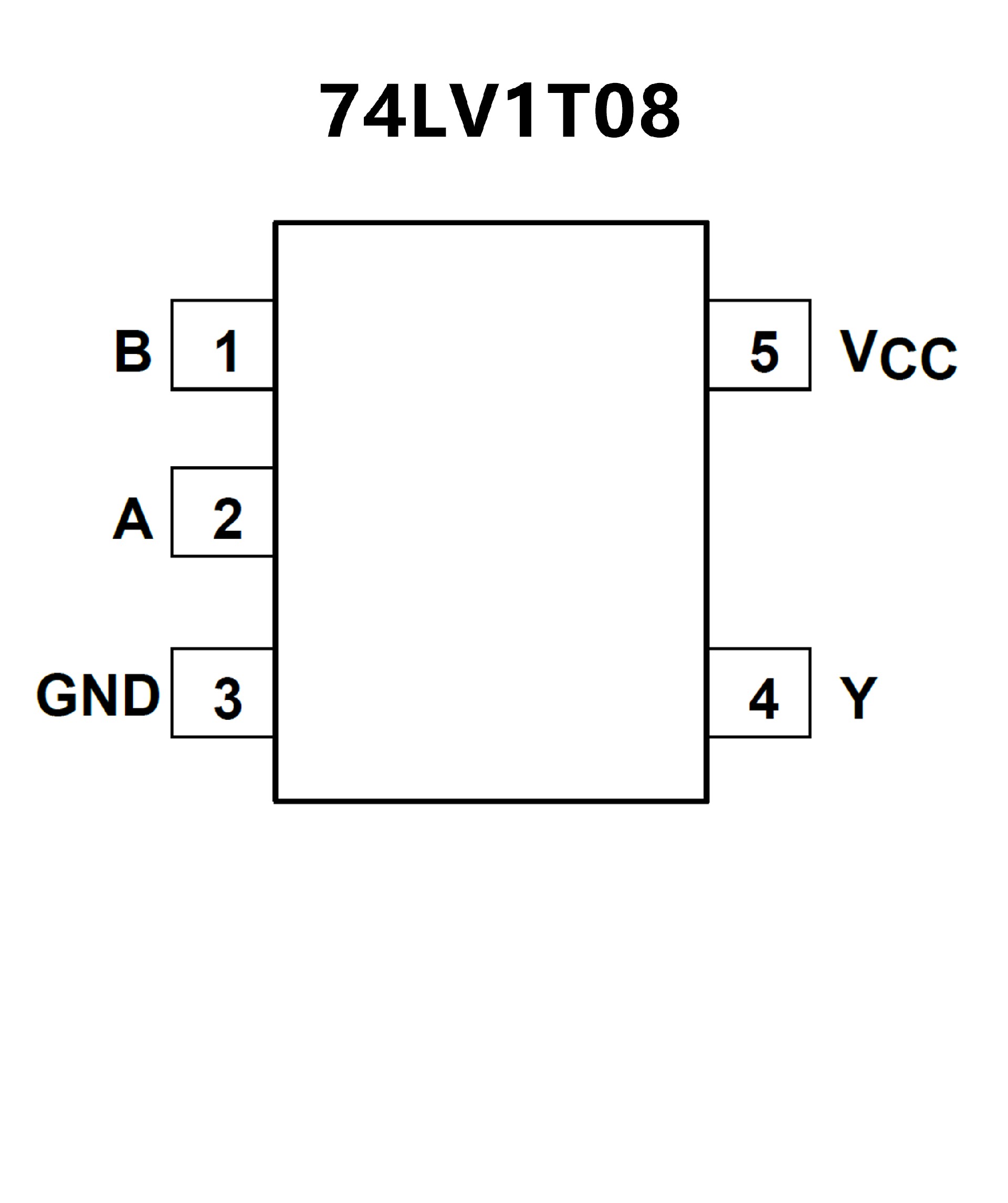

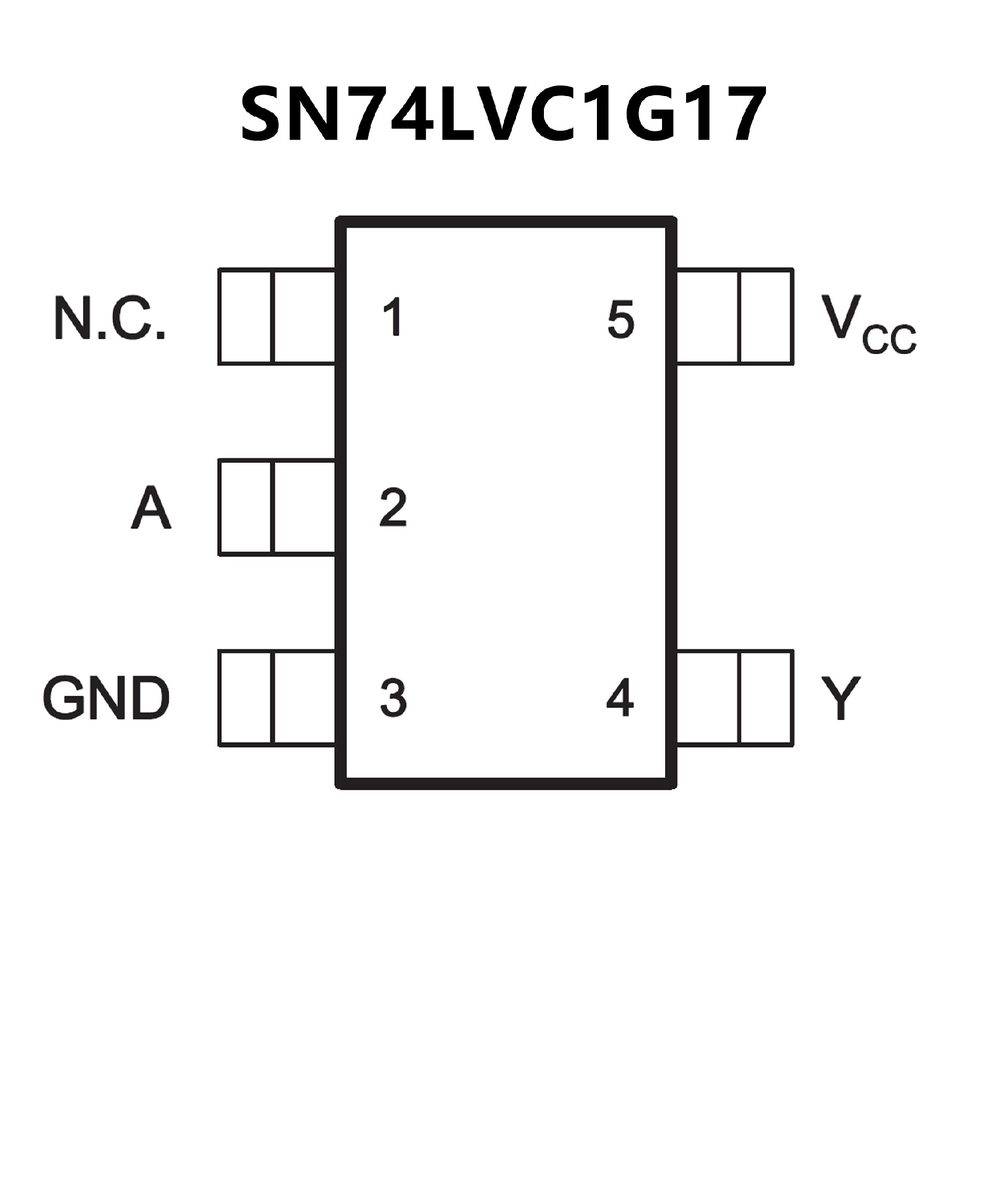

74LV1T08.pdf? Single Supply Voltage Translator at 1.8V, 2.5V,
3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package
? Available in Ultra Small 0.64-mm2
Package (DPW) With 0.5-mm Pitch
? Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 4.6 ns at 3.3 V
? Low Power Consumption, 10-μA Max ICC
? ±24-mA Output Drive at 3.3 V
? Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
? Latch-Up Performance Exceeds 100 mA Per JESD
78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
