74AUP1G07XUDL6G.pdf? Wide Supply Voltage Range: 0.8V to 3.6V
? Inputs Accept Voltages Higher than the Supply
Voltage
? 4mA Output Current
? Low Quiescent Current: ICC = 0.1μA (TYP)
? Low Dynamic Power Dissipation:
CPD = 2.5pF at VCC = 3.3V (TYP)
? Input with Schmitt-Trigger
? Support Partial Power-Down Mode
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-5, SOT-23-5 and

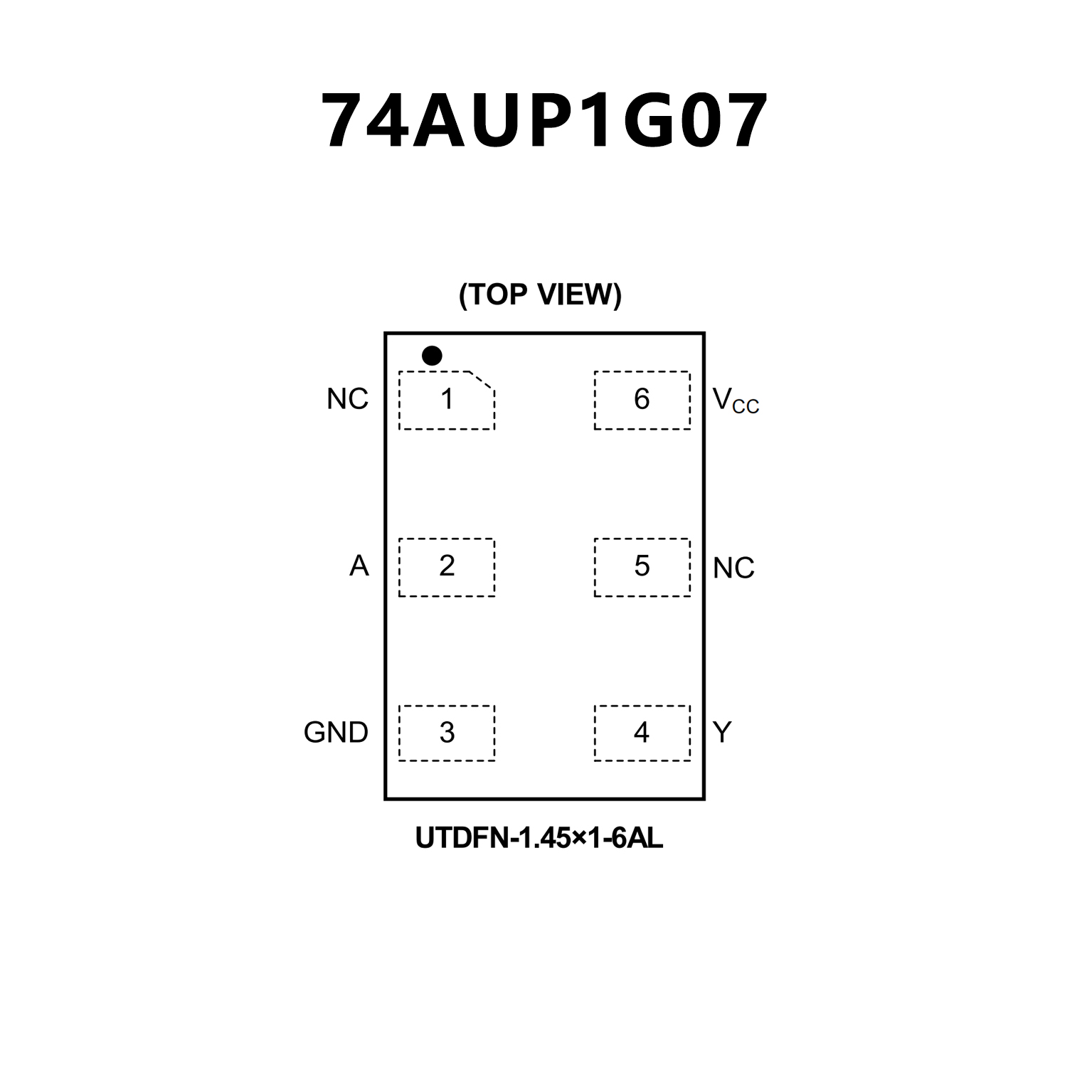

UTDFN-1.45×1-6AL Packages
? Wide supply voltage range from 0.8 V to 3.6 V
? High noise immunity
? CMOS low power dissipation
? Complies with JEDEC standards:
? JESD8-12 (0.8 V to 1.3 V)
? JESD8-11 (0.9 V to 1.65 V)
? JESD8-7 (1.65 V to 1.95 V)
? JESD8-5 (2.3 V to 2.7 V)
? JESD8C (2.7 V to 3.6 V)
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 5000 V
? CDM: ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V
? MM: JESD22-A115-A exceeds 200 V
? Low static power consumption; ICC = 0.9 μA (maximum)
? Latch-up performance exceeds 100 mA per JESD 78 Class II
? Overvoltage tolerant inputs to 3.6 V
? Low noise overshoot and undershoot < 10 % of VCC
? IOFF circuitry provides partial Power-down mode operation
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
