Quad 2 Input Exclusive OR Gate，74AHCT86 Replace 74AHCT86D.
74AHCT86
74AHCT86.pdf
74AHCT86.pdfFEATURES
? Balanced Propagation Delays
? All Inputs Have Schmitt Trigger Actions
? Inputs Accept Voltages Higher Than VCC
? Operates with TTL Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

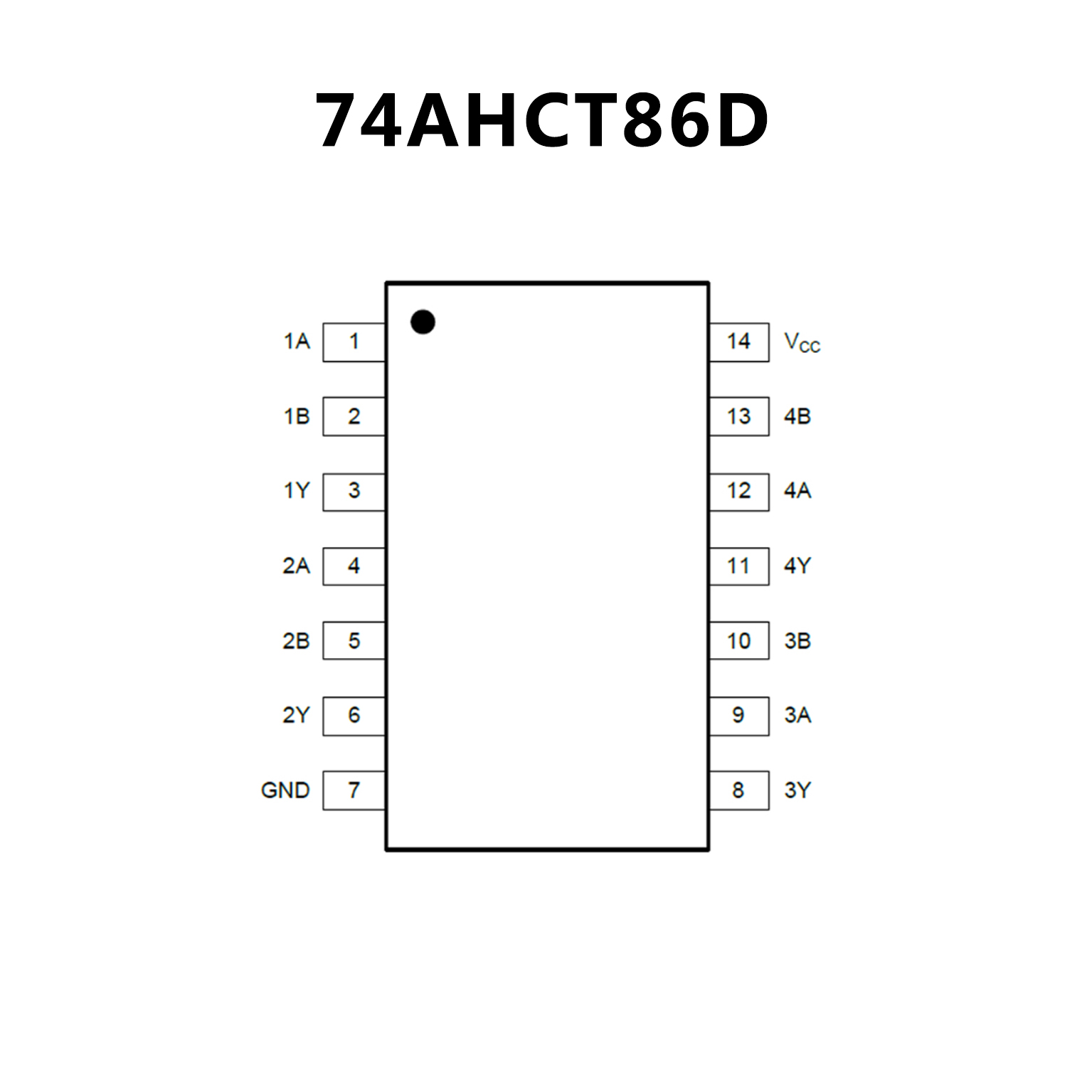

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide supply voltage range from 2.0 V to 5.5 V
? Input levels:
? For 74AHC86: CMOS level
? For 74AHCT86: TTL level
? Balanced propagation delays
? All inputs have Schmitt-trigger actions
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? ESD protection:
? HBM JESD22-A114E exceeds 2000 V
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

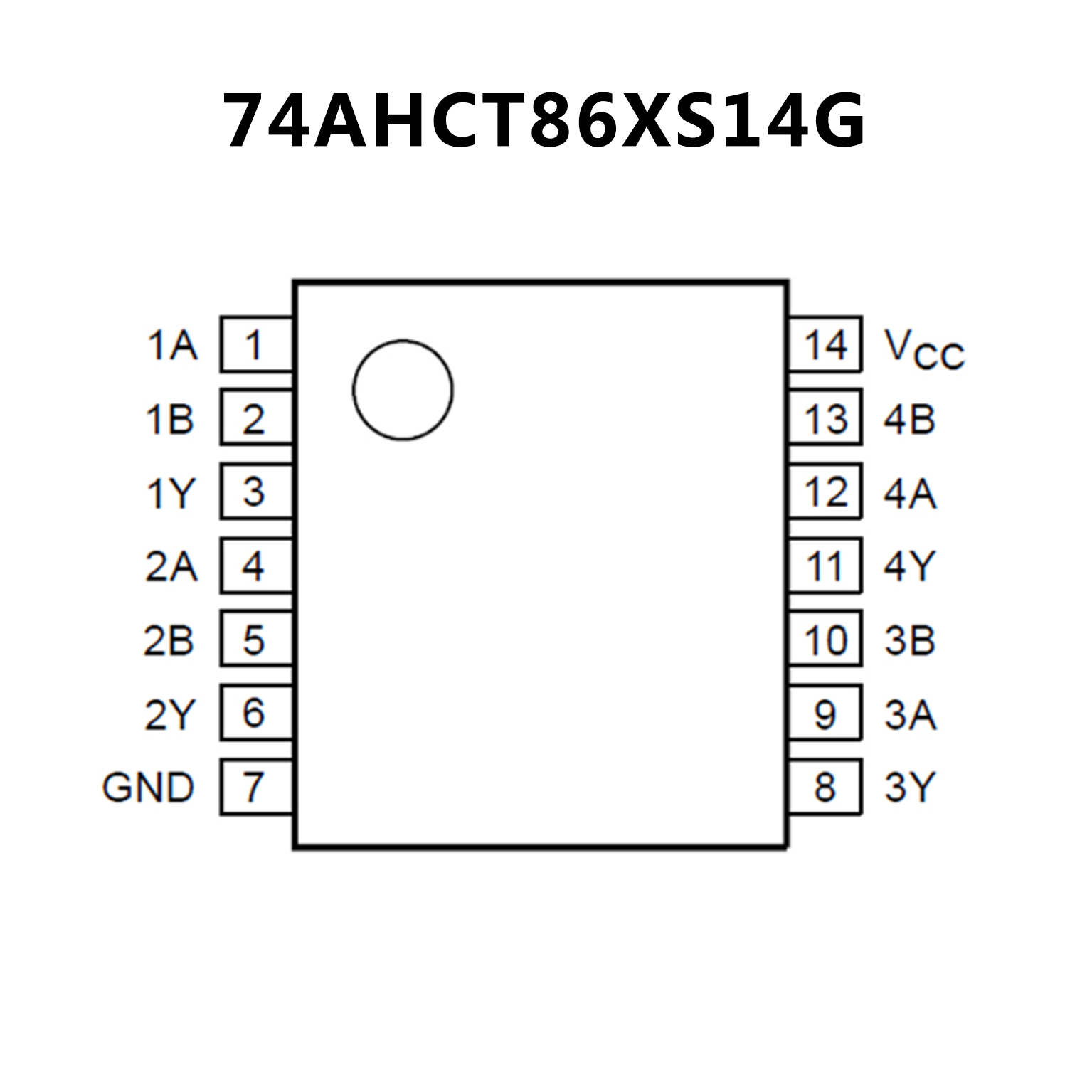

PIN CONFIGUTION
