Octal D type transparent latch; 3 state，74AHC573XS20G Replace 74AHC573PW
74AHC573XTS20G.pdf優(yōu)勢替代
FEATURES
? Wide supply voltage range from 2.0 V to 5.5 V
? Balanced propagation delays
? All inputs have Schmitt-trigger action
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? Common 3-state output enable input
? Functionally identical to the 74AHC373; 74AHCT373
? nput levels:
? For 74AHC573: CMOS input level
? For 74AHCT573: TTL input level
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Latch-up performance exceeds 100
mA per JESD 78 Class II Level A
? Multiple package options
? Specified from -40 °C to +85 °C and
from -40 °C to +125 °C

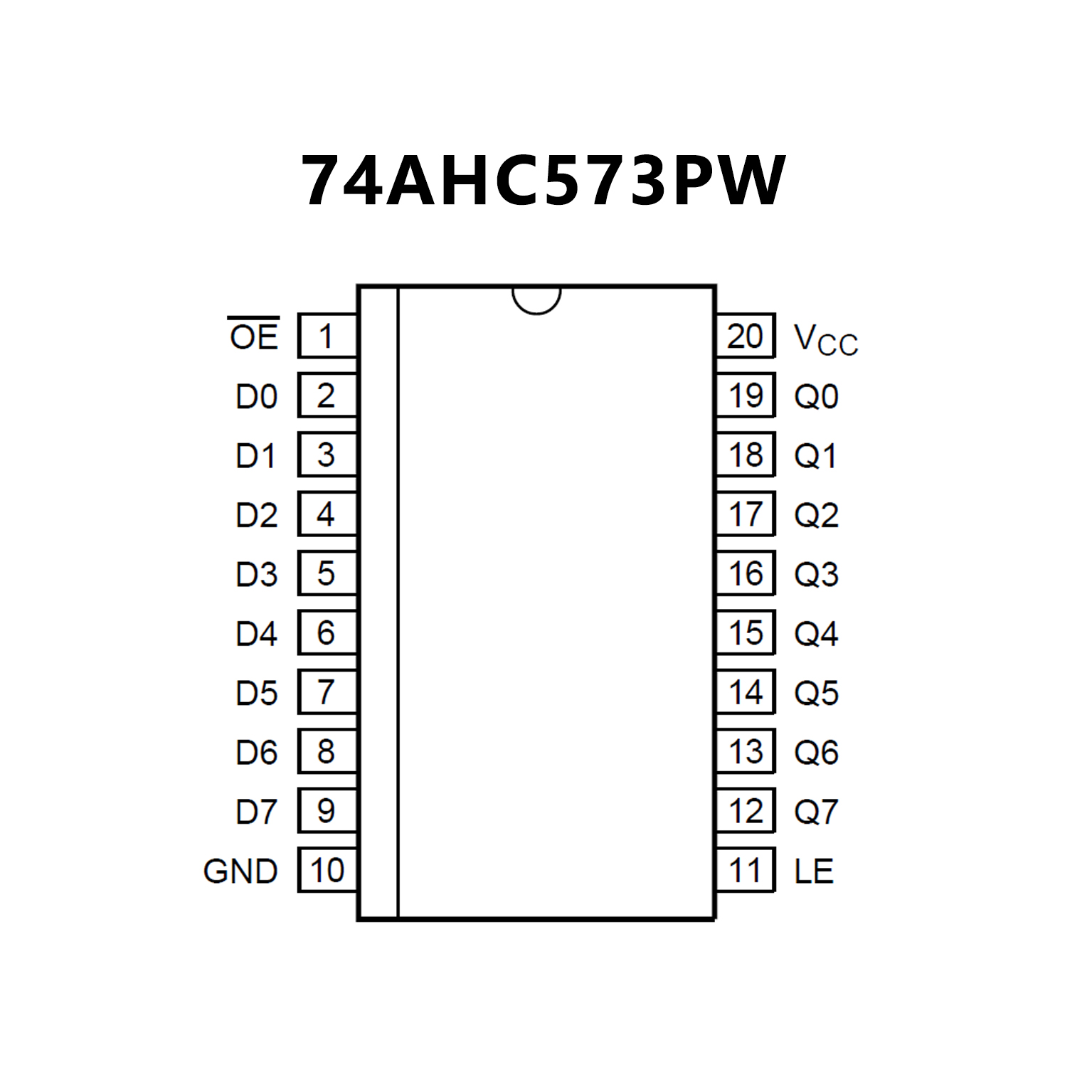

PIN CONFIGUTION
