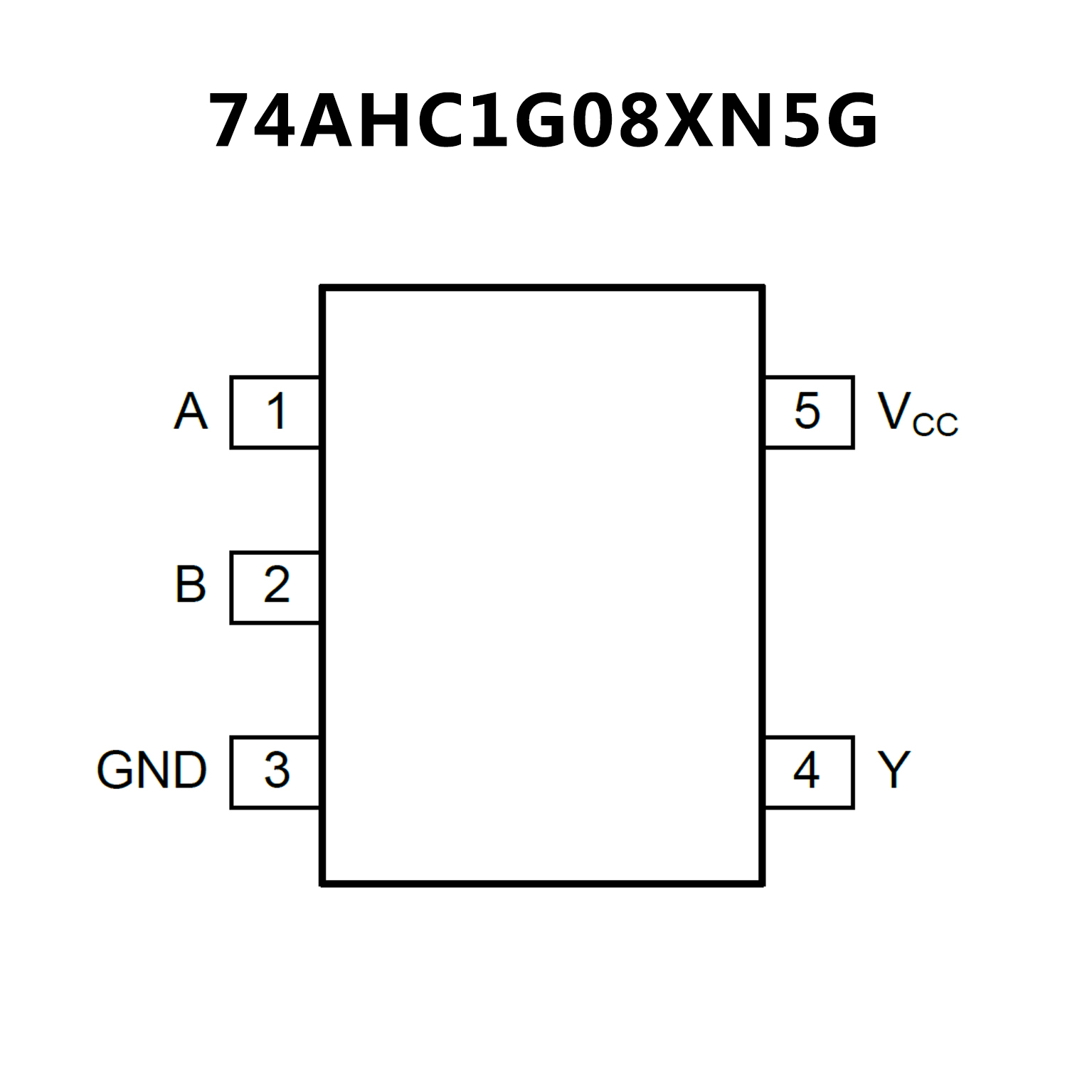

74AHC1G08.pdf? Wide Supply Voltage Range: 2.0V to 5.5V
? +8mA/-8mA Output Current at VCC = 5.0V
? Low Quiescent Current: ICC = 2μA (MAX)
? Propagation Delay:
tPD = 4.5ns (TYP) at VCC = 5V and CL = 50pF
? All Inputs with Schmitt-Trigger Action
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-5 and SOT-23-5 Packages
? Wide supply voltage range from 2.0 to 5.5 V
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? Latch-up performance exceeds
100 mA per JESD 78 Class II Level A
? Symmetrical output impedance
? Balanced propagation delays
? Input levels:
? For 74AHC1G08: CMOS level
? For 74AHCT1G08: TTL level
? ESD protection:
? HBM JESD22-A114E: exceeds 2000 V
? MM JESD22-A115-A: exceeds 200 V
? CDM JESD22-C101C: exceeds 1000 V
? Specified from -40 °C to +125 °C
