Quad 2 Input AND Gate, 74AHC08XTS14G Replace 74AHC08PW
74AHC08XTS14G
74AHC08XTS14G.pdf
74AHC08XTS14G.pdfFEATURES
? Supply Voltage Range: 2.0V to 5.5V
? Over-Voltage Tolerant Inputs up to 5.5V
? CMOS Low Power Dissipation
? Balanced Propagation Delays
? All Inputs with Schmitt-Trigger Action
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-14 Package

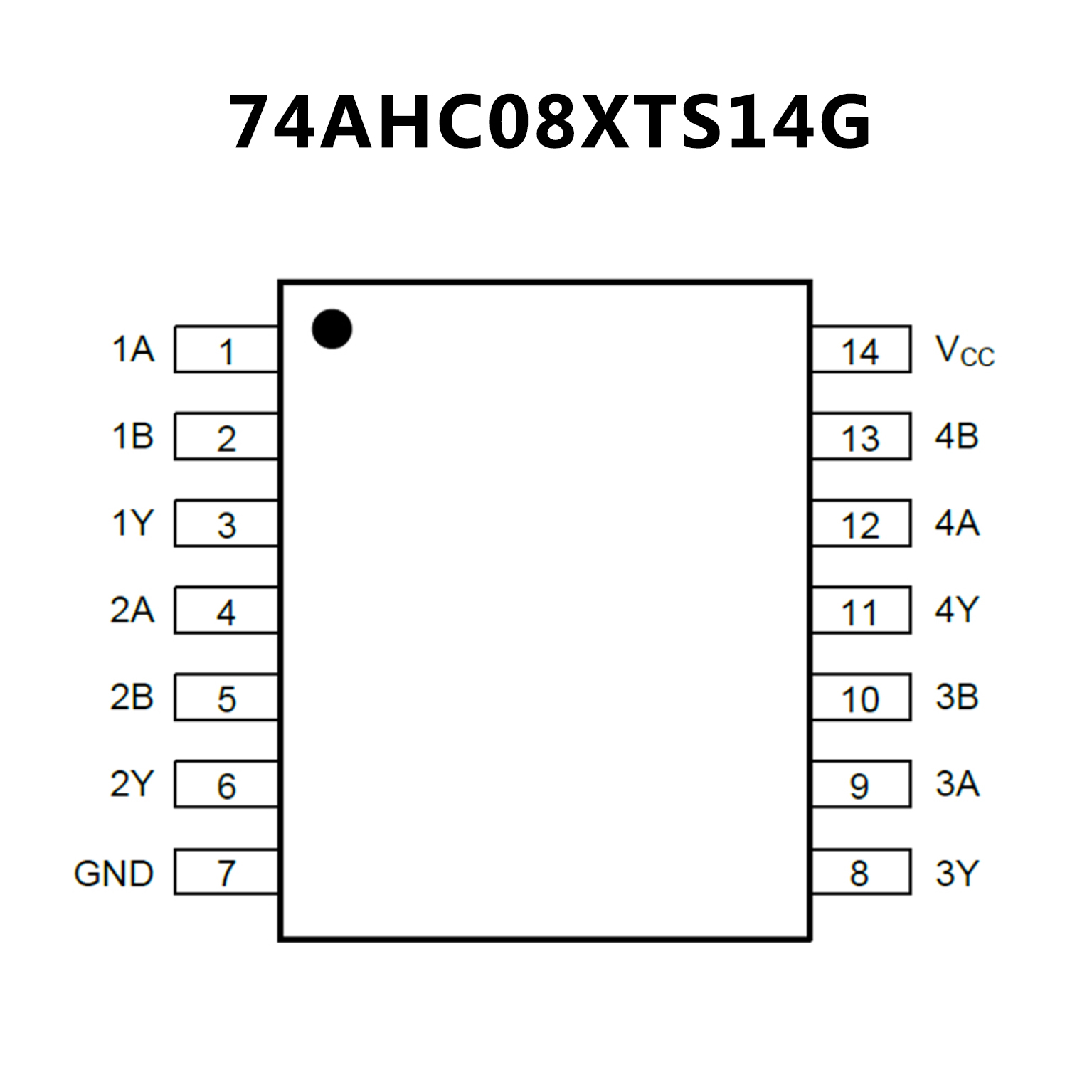

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide supply voltage range from 2.0 V to 5.5 V
? Input levels:
? For 74AHC08: CMOS level
? For 74AHCT08: TTL level
? Balanced propagation delays
? All inputs have a Schmitt-trigger action
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? ESD protection:
? HBM EIA/JESD22-A114E exceeds 2000 V
? MM EIA/JESD22-A115-A exceeds 200 V
? CDM EIA/JESD22-C101C exceeds 1000 V
? Latch-up performance exceeds 100 mA
per JESD 78 Class II Level A
? Multiple package options

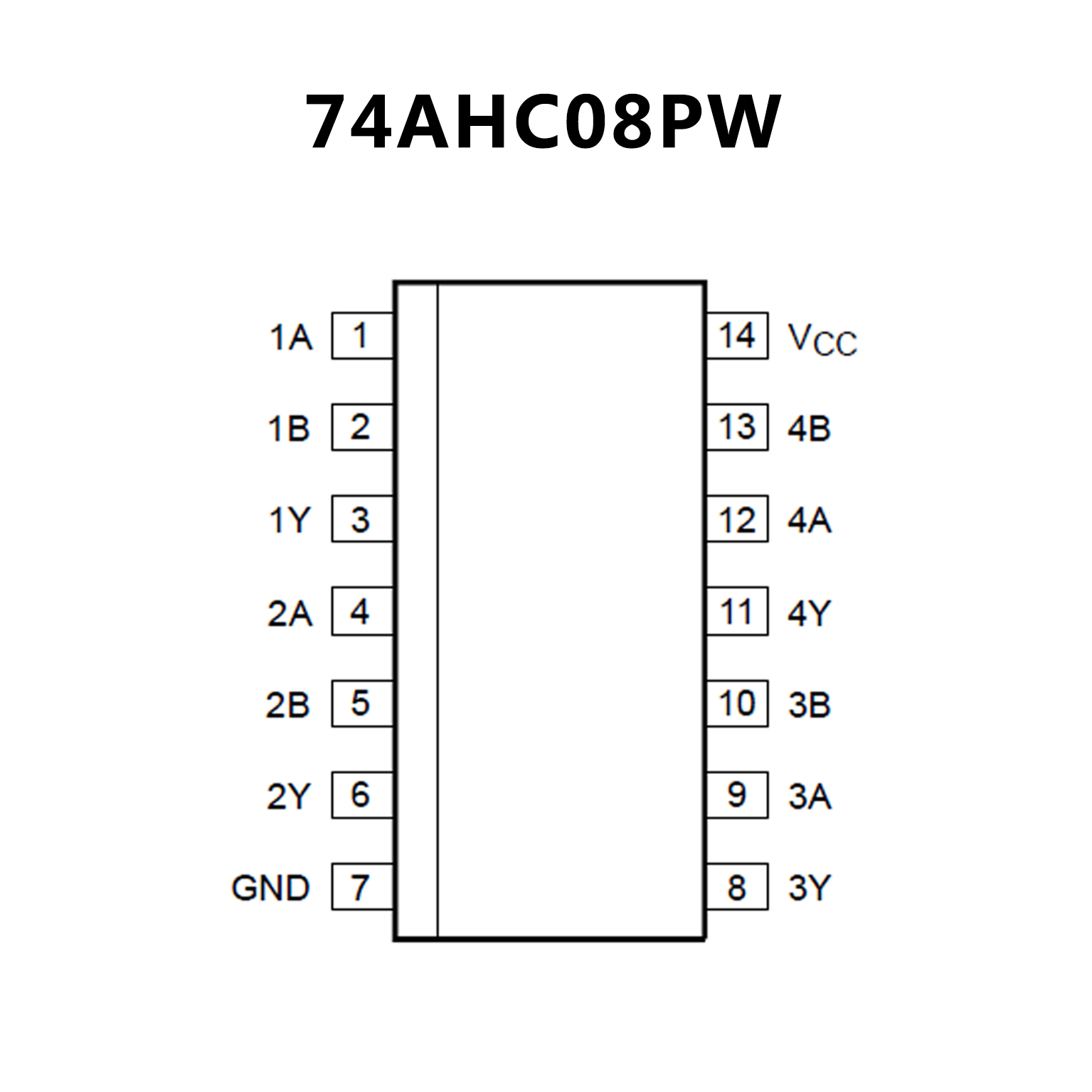

PIN CONFIGUTION
