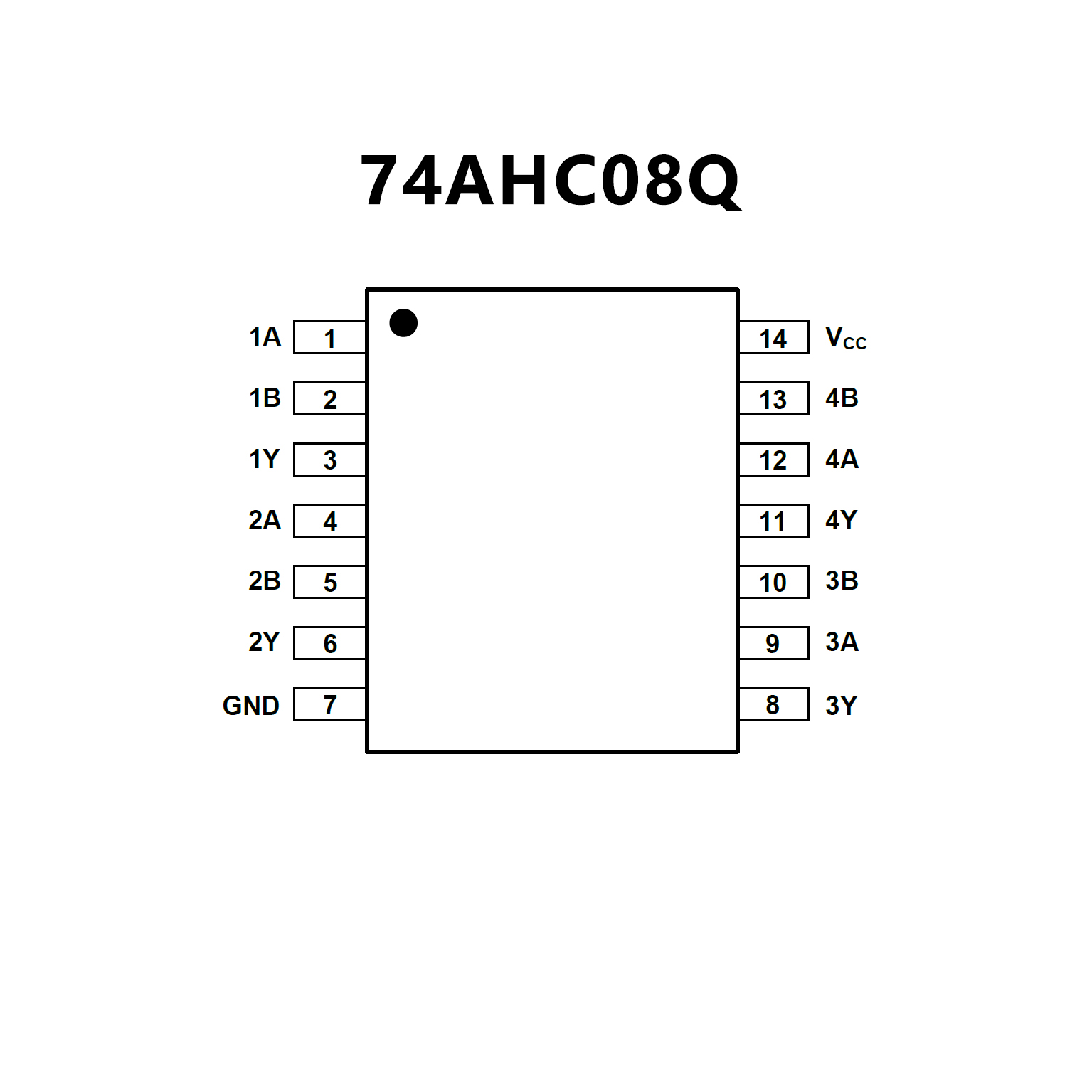

74AHC08Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Supply Voltage Range: 2.0V to 5.5V
? Over-Voltage Tolerant Inputs up to 5.5V
? CMOS Low Power Dissipation
? Balanced Propagation Delays
? All Inputs with Schmitt-Trigger Action
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-14 Package
? Automotive product qualification in
accordance with AEC-Q100 (Grade 1)
? Specified from -40 °C to +85 °C and
from -40 °C to +125 °C
? Wide supply voltage range from 2.0 V to 5.5 V
? Input levels:
? For 74AHC08-Q100: CMOS level
? For 74AHCT08-Q100: TTL level
? Balanced propagation delays
? All inputs have a Schmitt-trigger action
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? ESD protection:
? MIL-STD-883, method 3015 exceeds 2000 V
? HBM EIA/JESD22-A114F exceeds 2000 V
? MM EIA/JESD22-A115-A exceeds
200 V (C = 200 pF, R = 0 ?)
? Latch-up performance exceeds
100 mA per JESD 78 Class II Level A
? Multiple package options
? DHVQFN package with Side-Wettable
Flanks enabling Automatic Optical
Inspection (AOI) of solder joints
